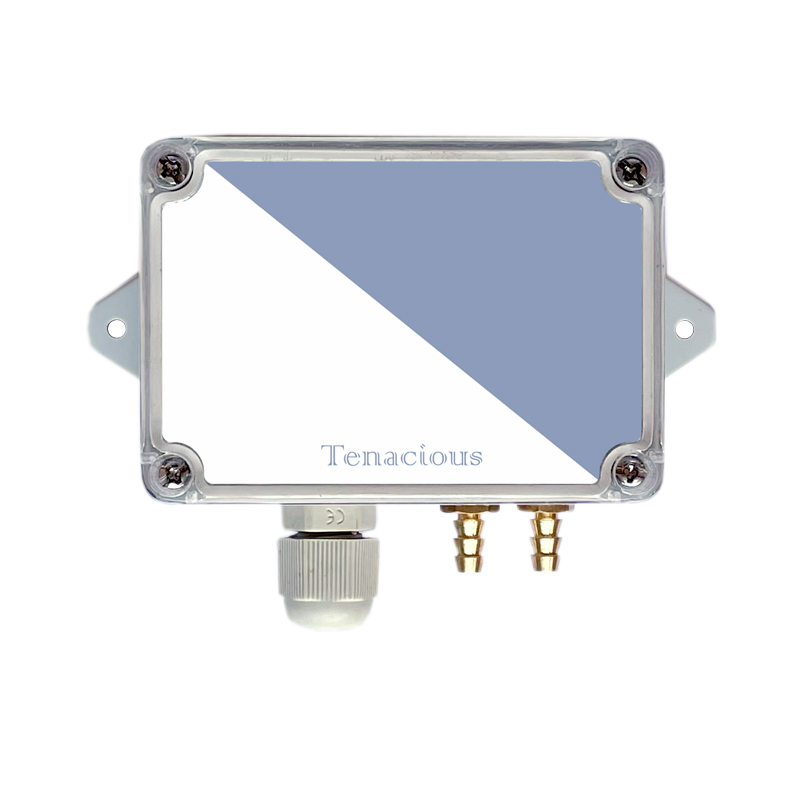

Low Cost OEM Differential Pressure Transmitter DPT-2
Price: ₹3800(Excluding GST)
Condition: New
Availability: In_stock
Tenacious's DPT-2 Series Differential Pressure Transmitter comes with stable piezoresistive silicon technology and additional features to reduce installation time and simplify ordering. The DPT-2 Series transmitter's on-board dip switches provide field selectable pressure ranges and engineering units and bidirection or unidirection mode functions. The DPT-1 Series is ready for flow or velocity measurement with a square root output function.
Potential Applications :
- Fan, blower and filter status monitoring
- Pressure and flow monitoring
- Valve and Damper control
- Cleanroom and Operation Theater Pressure monitoring
- Air flow monitoring across centrifugal fans and blowers
- In-duct air flow or pressure monitoring
- Measuring air flow or pressure in VAV applications
Technical Specification :
- Pressure Ranges : ±25Pa/250Pa/1000Pa/2500Pa/10000Pa/35000Pa
- Sensing Technology : piezoresistive silicon
- Media compatibility : Air or non-corrosive gases
- Accuracy : ±1%FS or ±2%FS
- Stability : ±1% / year FSO
- Response Time : 0.5Sec
- Output : 4-20mA Loop /0-10v/0-5V/0-3V/0.5-4.5V/Custom
- Eng Units : Pa,mmWC,inWC,Square Root For Flow
- Display : N/A
- Process Connection : 4mm Id Flex.Tube
- Power Supply : 12-30Vdc
- Material & Rating : ABS
- Electronics Environmental Operating range : Temperature (0 to 50 °C) RH 0 to 100% non-condensing
