Differential Pressure Transmitter | DPT
Price: ₹4850(Excluding GST)
Condition: New
Availability: In_stock

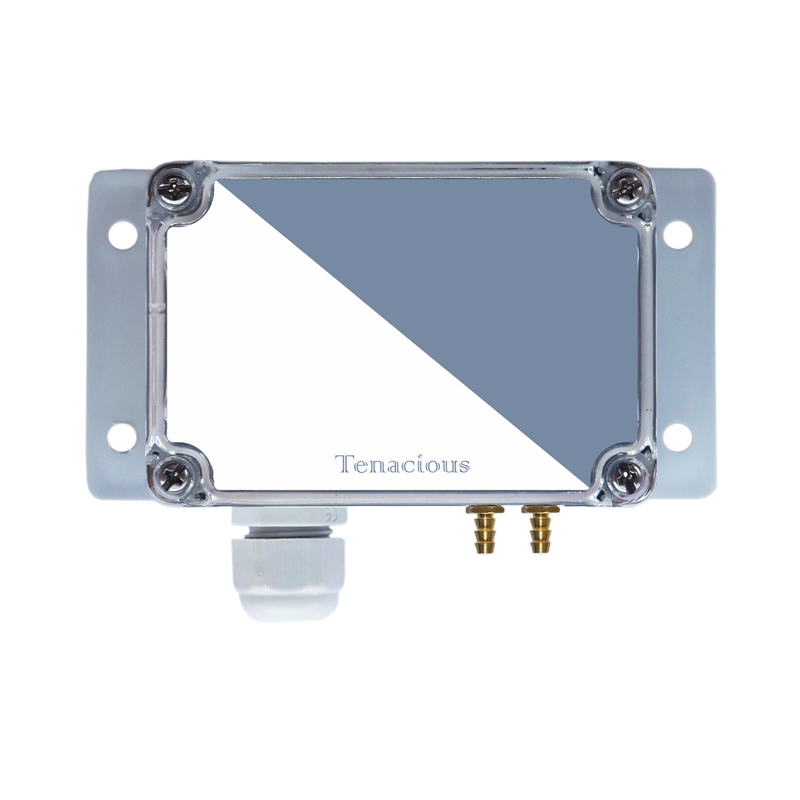

Tenacious's DPT-1 Series Differential Pressure Transmitter comes with stable piezoresistive silicon technology and additional features to reduce installation time and simplify ordering. The DPT-1 Series transmitter's on-board dip switches provide field selectable pressure ranges and engineering units, along with an on-board jumper that provides bidirection and unidirection mode functions. The DPT-1 Series is ready for flow or velocity measurement with a square root output function.
Potential Applications :
- Fan, blower and filter status monitoring
- Pressure and flow monitoring
- Valve and Damper control
- Cleanroom and Operation Theater Pressure monitoring
- Air flow monitoring across centrifugal fans and blowers
- In-duct air flow or pressure monitoring
- Measuring air flow or pressure in VAV applications
Technical Specification :
- Pressure Ranges : ±25Pa/250Pa/1000Pa/2500Pa/10000Pa/35000Pa
- Sensing Technology : piezoresistive silicon
- Media compatibility : Air or non-corrosive gases
- Accuracy : ±1%FS or ±2%FS
- Stability : ±1% / year FSO
- Over pressure : 10psi(DPT-1-1/2/3),72psi(DPT-1-4/5)
- Burst pressure : 14psi(DPT-1-1/2/3),80psi(DPT-1-4/5)
- Response Time : 0.5Sec
- Output : 4-20mA/0-10v/0-5V/RS485 Modbus RTU
- Eng Units : Pa,mmWC,inWC,m/s,CFM
- Display : LED(Optional)
- Process Connection : 4mm Id Flex.Tube
- Power Supply : 24Vdc/ac
- Material & Rating : ABS/Polycarbonate
- Electronics Environmental Operating range : Temperature (0 to 50 °C) RH 0 to 100% non-condensing
